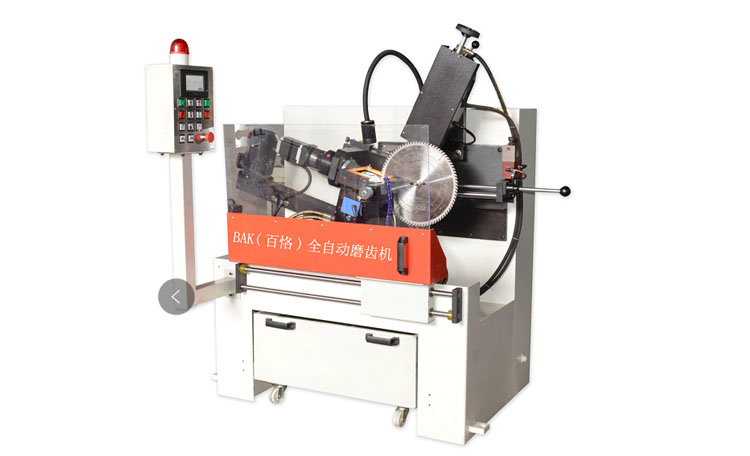

Alloy Saw Blade Grinding Machine/Imported Saw Blade
This equipment is suitable for woodworking saw blades in furniture factories, multi-blade saw blades with scrapers, and alloy circular saw blades in aluminum factories.It can grind alloy circular saw blades with a diameter of Φ480-800.The operation is simple and Fully extend the service life of alloy circular saw blades, each blade can be reused 15- 30 times, this equipment has been praised by many buyers。
| 合金鋸片磨齒機的參數 | |
|---|---|
| 加工鋸片直徑范圍 | Φ80-800mm |
| 鋸片孔徑 | Φ10-220mm |
| 鋸片厚度（鋼板） | 1-7mm |
| 齒距 | 5-100mm |
| 齒面角度 | 1°-45° |
| 齒頂背角 | 2°-45° |
| 齒左右斜度 | 齒頂/齒面1°-45° |
| 刃磨行程范圍 | 最大28mm（可調）齒/分 |
| 刃磨速度 | 0.5-6mm/s |
| 工作速度 | 最大20齒/分 |
| 砂輪尺寸(外徑x孔) | Φ125mm×Φ32mm |
| 負倒角研磨 | -20° |
| 磨頭可旋轉角度 | 90°，180° |
| 砂輪轉速 | 5600R/min |
| 冷卻液水泵流量 | 50L/min |
| 冷卻液缸容積 | 85L |
| 總功率 | 3KW |
| 電壓 | 三相380v |
| 機械重量 | 700KG |
| 機械尺寸(長x寬x高) | 1200×1100×1800mm |
This equipment is suitable for woodworking saw blades in furniture factories, multi-blade saw blades with scrapers, and alloy circular saw blades in aluminum factories.It can grind alloy circular saw blades with a diameter of Φ480-t 800.The operation is simple and Fully extend the service life of alloy circular saw blades, each blade can be reused 15-30 times, this equipment has been praised by many buyers.
